V-Grooving Machine

A V Grooving Machine is essential for producing high-quality rigid boxes, gift boxes, and luxury packaging. It creates precise V-shaped grooves in cardboard, MDF, and other boards. These grooves allow for clean, sharp, and accurate folds, resulting in a professional finish with crisp edges, which significantly enhances the final product's appearance and structural integrity.

Yes. Our machines accommodate a broad range:
Material Thickness: From 0.8mm up to 4.0mm for cardboard, and materials over 250gsm for paper.
Board Width: PC-1200 handles 100-1000mm; PC-1200S handles 100-950mm.
Board Length: Virtually unlimited, perfect for large production sheets.
For highly specific or oversized requirements, we encourage you to contact us to discuss a tailored solution.

We prioritize precision. Our semi-automatic PC-1200 model delivers reliable, consistent grooves. Our advanced automatic PC-1200S model achieves a high precision level of ±0.05-0.1mm, ensuring perfect fold lines crucial for luxury packaging. The automatic feeding system with self-correction further guarantees this accuracy.

The PC-1200 Semi-Automatic model is a robust, cost-effective solution perfect for workshops with lower to medium volume or varied batch sizes. It offers excellent precision and comes with 8 pairs of spare knives.

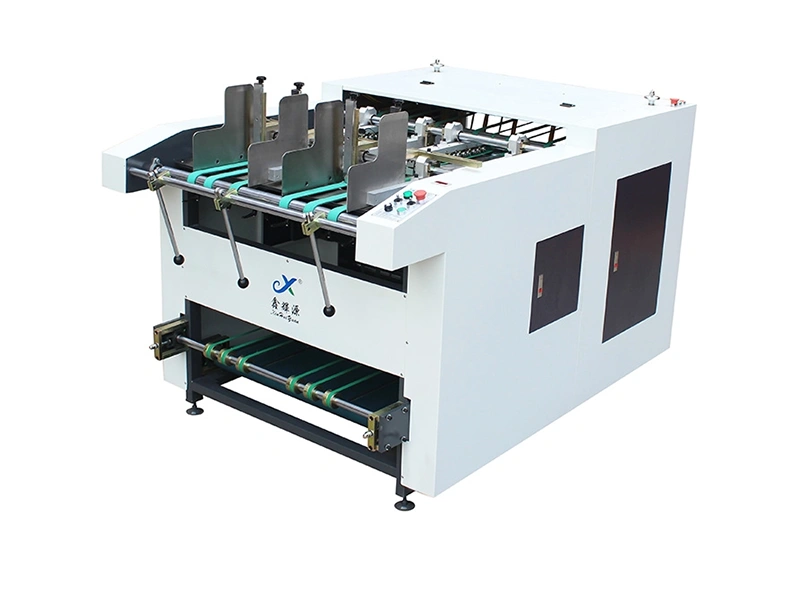

The PC-1200S Automatic model is designed for higher-volume production. It features an automatic marble gravity feeding system for faster, more consistent material handling, can create up to 12 slots at once, and offers higher working speed (25-50 M/min) with exceptional accuracy (±0.05-0.1mm). It also includes 12 pairs of spare knives.

Our machines are designed to handle a wide range of materials commonly used in premium packaging, including ash cardboard, grey board, copperplate paperboard, glossy paper, mounted cardboard, and MDF board. This versatility makes them ideal for various packaging applications from jewelry boxes to electronics packaging.
