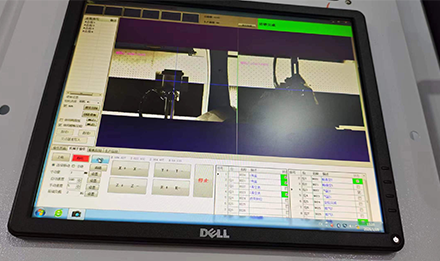

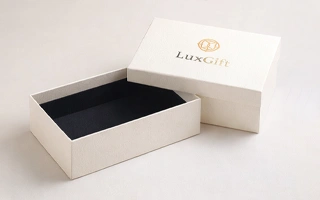

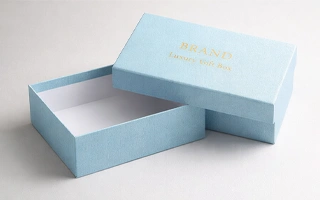

Produce both lid and base with Yamaha Vision positioning system for high precision and fast size changeovers.

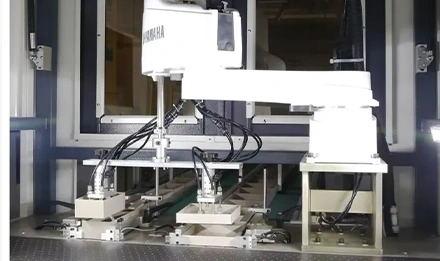

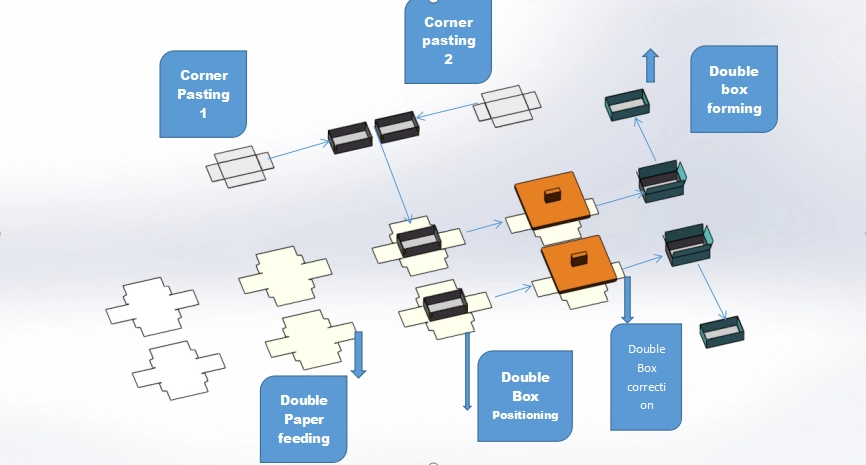

PC-8040A is a high-end automatic dual-station rigid box making machine designed for high-volume production. Equipped with Yamaha robot and vision positioning system, it can produce lid and base at the same time with high accuracy and fast changeover.
| Model | PC-8040A |
| Paper size | L120mm-1000mm W80mm-780mm |
| Paper thickness | 80-300g/m² |
| Box double fixed maximum size | L350*W200*H80mm |
| Maximum box size | L500*W400*H120mm |
| Minimum box size | L65*W65*H15mm |
| Production speed | 20-44Pcs/min |
| Positioning accuracy | ±0.1mm |
| Motor power | 8KW/380V 3Phase |
| Gas source requirements | 10L/min 0.8MPa |
| Machine weight | 1500KG |
| Machine dimensions | L7600*W7200*H2150mm |
Our machines can be tailored to your specific workflow.
Tell us about your primary box dimensions, target output, and material types for a tailored proposal and ROI analysis.
