PC-5010D

Automatic Rigid Box And Hardcover Making Machine (2in 1)

PC-5010D combines rigid box and hardcover production in one automatic line, offering a compact and efficient solution.

  • Max. box size
    L500*W400*H120mm
  • Max cover size
    L1000*W500mm
  • Production speed
    16-22PCS/min;20-30PCS/min
GET A QUOTE
Automatic Rigid Box And Hardcover Making Machine (2in 1)
Product Introduction

PC-5010D is a 2-in-1 automatic machine for rigid box and hardcover making. One production line can handle both products, helping save space, labor cost and investment while ensuring stable and efficient production.

Product Features
Dual-Function Design
Integrates two production processes (rigid box and hardcover making) into a single, versatile automated line.
High-Efficiency Automation
Delivers automatic and stable production for consistent, high-quality output.
Space-Saving Layout
Replaces the need for two separate machines, significantly optimizing floor space.
Cost-Effective Investment
Saves on both initial capital outlay and long-term labor costs.
Workstation Detail Diagram
Cam Servo Feeder
Cam Servo Feeder

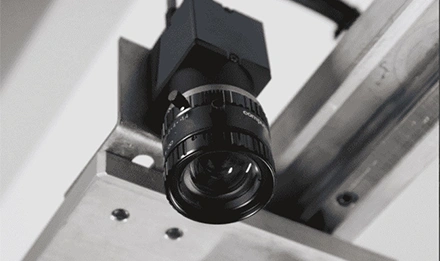

Camera
Camera
Japanese made Yamaha Robotic Arm Positioning
Japanese made Yamaha Robotic Arm Positioning

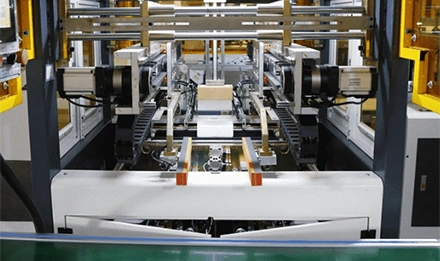

Forming
Forming
Press Plate
Press Plate
Forming
Forming
Technical Specifications
Model PC-5010D
Paper size L140mm-1100mm   W100mm-600mm
Paper thickness 80-200g/m²
Paper stacking height 500mm
Maximum box size L500*W400*H120mm
Minimum box size L65*W65*H15mm
Cardboard thickness 1-3mm
Cardboard max size L700*W600mm
Fold ear size 10-100mm
Paper turn in depth 10-80mm
Max cover size L1000*W500mm
Min cover size L130*W90mm
Seperated book cover cardboard quantity 1-6pcs
Middle strip size 10mm
Position precision ±0.1mm
Box production speed 16-22Pcs/min
Cover production speed 20-30Pcs/min
Air supply 20L/min 0.8MPa
Motor power 16.5KW/380V 3Phase
Heating power 6KW
Machine weight 4800KG
Machine dimension L1090*W4200*H2150mm

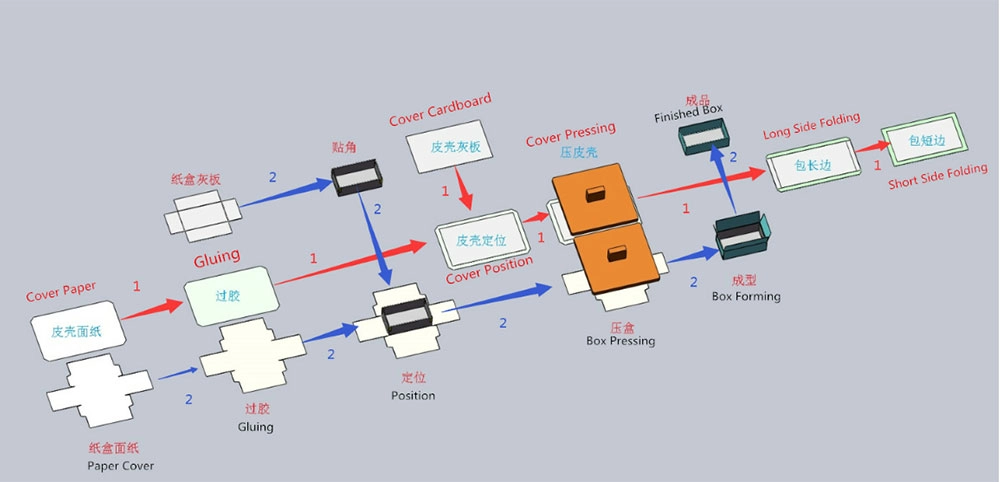

Production Flow



Automatic Rigid Box And Hardcover Making Machine (2in 1) Production Flow

Applications
PC-5010D widely use in the gift box, shoe box, sweet box, tea box, cosmetic box, electronic product box, T-shirt box, mobile phone box, jewelry box, chocolate box, blanket box, watch box, sock box. Machine also can do the calendar, hardbook cover, folder.
Hardbook Cover
Hardbook Cover
Gift Box
Gift Box
Chocolate Box
Chocolate Box
Cosmetic Box
Cosmetic Box
