Compact servo-driven automatic rigid box making machine with Yamaha visual positioning and stable, efficient performance.

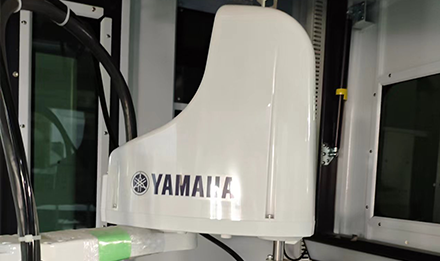

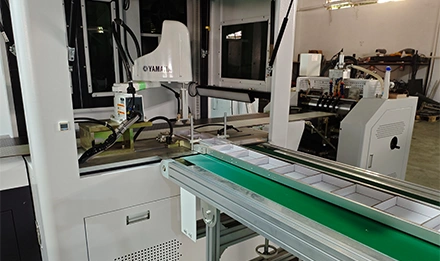

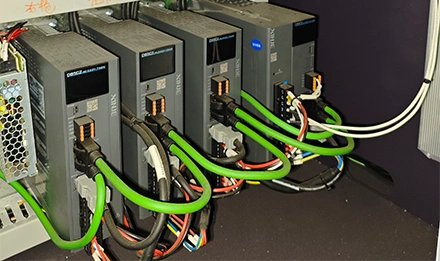

PC-350A is a compact automatic rigid box making machine with Yamaha visual robot and fully servo system. It integrates forming, corner pasting and feeding in one line. Speed up to 30–35 pcs/min.
| Model | PC-350A |
| Paper size | L120mm-600mm W80mm-400mm |
| Paper thickness | 80-200g/m² |
| Paper stacking height | 450mm |
| Maximum box size | L300*W260*H100mm |
| Minimum box size | L45*W45*H15mm |
| Fold ear size | 10-100mm |
| Folding depth of noodle paper | 10－80mm |
| Thickness of gray board | 1-3mm |
| Maximum unfolded size of grey board | L500*W400mm |
| Stacking height of gray boards | 1000mm |
| Positioning accuracy | ±0.1mm |
| Production speed | 20-35Pcs/min |
| Gas source requirements | 20L/min 0.8MPa |
| Motor power | 15KW/380V 3Phase |
| Electric heating power | 6KW |
| Machine weight | 4000KG |
| Machine dimensions | L6500*W3900*H2400mm |
The PC-350A automatic rigid box making machine streamlines the box production process through precise automation. It efficiently folds, glues, and shapes cardboard into high-quality boxes, ensuring consistent size and strength. With customizable features, it adapts to various designs, enhancing productivity and meeting diverse packaging needs.
Our machines can be tailored to your specific workflow.
Tell us about your primary box dimensions, target output, and material types for a tailored proposal and ROI analysis.
