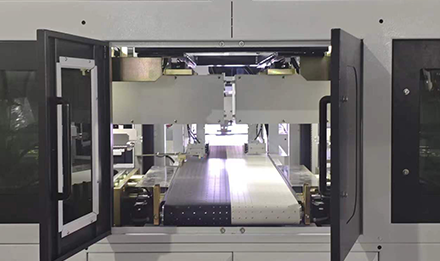

High-speed automatic rigid box making machine with Mitsubishi robot and dual forming stations for small-size boxes.

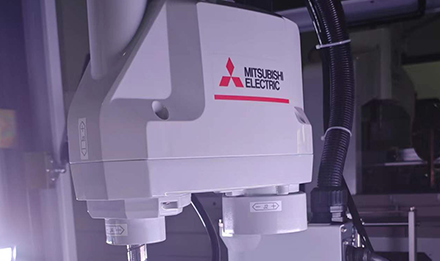

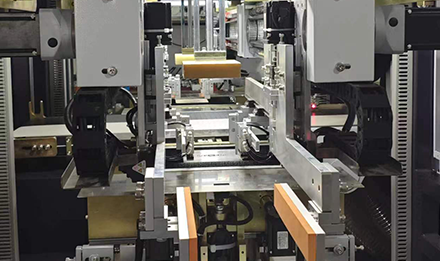

PC-350B is a high-speed automatic rigid box machine for small boxes with Mitsubishi robot, full servo system and dual forming stations. Speed up to 50-60 pcs/min.
| Model | PC-350B |
| Paper size | L120mm-600mm_W80mm-400mm |
| Paper thickness | 80-200g/m² |
| Paper stacking height | 450mm |
| Maximum box size | L300*W260*H100mm |
| Minimum box size | L45*W45*H15mm |
| Fold ear size | 10-100mm |
| Folding depth of noodle paper | 10-80mm |
| Thickness of gray board | 1-3mm |
| Maximum unfolded size of grey board | L500*W400mm |
| Stacking height of gray boards | 1000mm |
| Positioning accuracy | ±0.1mm |
| Production speed | 35-50Pcs/min |
| Gas source requirements | 20L/min 0.8MPa |
| Motor power | 17KW/380V 3Phase |
| Electric heating power | 6KW |
| Machine weight | 5200KG |
| Machine dimensions | L6500*W5000*H2400mm |
Our machines can be tailored to your specific workflow.
Tell us about your primary box dimensions, target output, and material types for a tailored proposal and ROI analysis.
