A cost-effective automatic rigid box making machine, ideal for customers upgrading from manual or semi-automatic production.
PC-5040B is an entry-level fully automatic rigid box making machine, designed for customers who want to upgrade from manual or semi-automatic production to automatic production with limited budget.
| Model | PC-5040B |
| Paper size | L140mm-800mm_W100mm-600mm |
| Paper thickness | 80-200g/m² |
| Paper stacking height | 500mm |
| Maximum box size | L500*W400*H120mm |
| Minimum box size | L65*W65*H15mm |
| Fold ear size | 10-100mm |
| Folding depth of noodle paper | 10-80mm |
| Thickness of gray board | 1-3mm |
| Maximum unfolded size of grey board | L700*W600mm |
| Stacking height of gray boards | 1000mm |
| Positioning accuracy | ±0.1mm |
| Production speed | 16-30Pcs/min |
| Gas source requirements | 30L/min 0.8MPa |
| Motor power | 15KW/380V 3Phase |
| Electric heating power | 6KW |
| Machine weight | 4900KG |
| Machine dimensions | L8200*W6000*H2150mm |

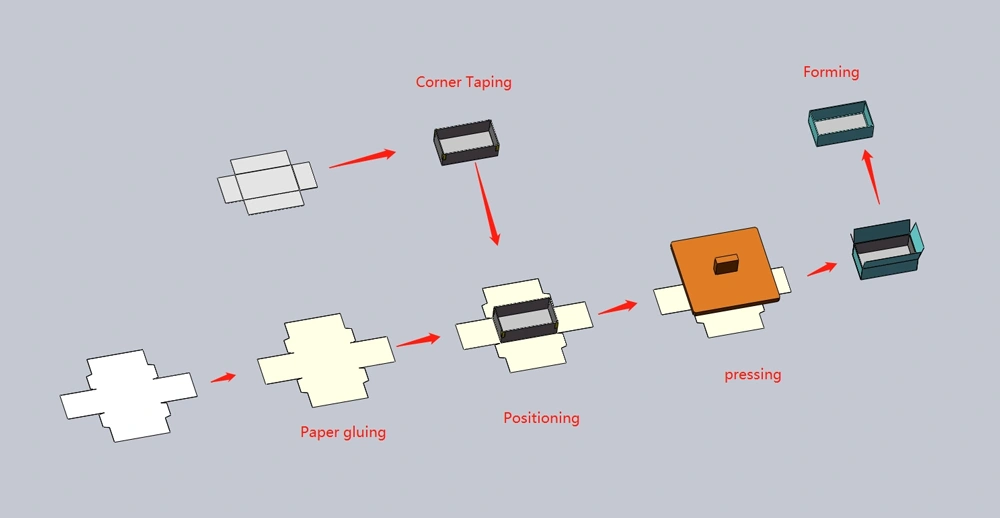

The PC-5040B automatic rigid box making machine streamlines the box production process through precise automation. It efficiently folds, glues, and shapes cardboard into high-quality boxes, ensuring consistent size and strength. With customizable features, it adapts to various designs, enhancing productivity and meeting diverse packaging needs.
Our machines can be tailored to your specific workflow.
Tell us about your primary box dimensions, target output, and material types for a tailored proposal and ROI analysis.
