PC-500A

High-Speed Automatic Rigid Box Corner Pasting Machine

PC-500A is a fully automatic rigid box corner pasting machine, designed to improve corner strength, consistency and production efficiency.

  • Maximum box size
    L500*W450*H140mm
  • Minimum box size
    L45*W45*H10mm
  • Production speed
    40-70pcs/min
GET A QUOTE
Automatic Rigid Box Corner Pasting Machine
Product Introduction

Automatic rigid box corner pasting machine PC-500A is a corner pasting machine for four corner pasting at one time.Belt convey greyboard.Speed fast with affordable price.

Product Features
Full Automation
Features fully automatic feeding and pasting, significantly saving on labor.
Reinforced Corner Strength
Ensures stable corner reinforcement for improved overall box durability.
High-Volume Suitability
Delivers high efficiency, making it ideal for mass production requirements.
User-Friendly Operation
Designed for easy operation with low maintenance needs.
Workstation Detail Diagram

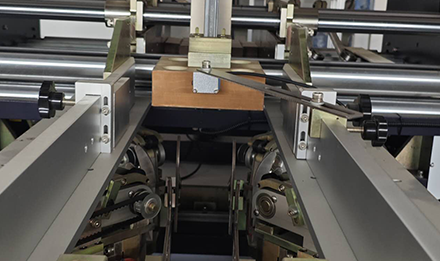

Corner Pasting Parts
Corner Pasting Parts

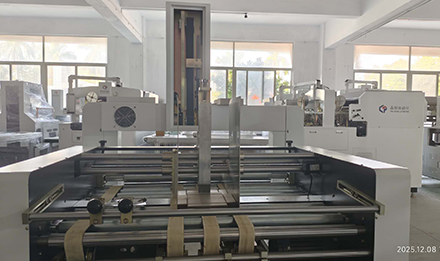

Feeding Parts
Feeding Parts

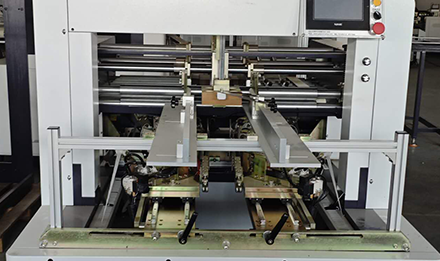

Machine Picture

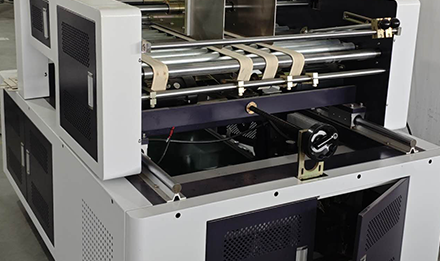

Machine Picture

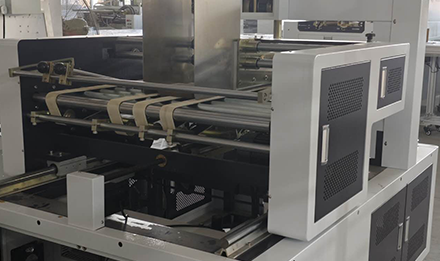

Machine Picture
Machine Picture
Machine Picture
Machine Picture
Technical Specifications
Model PC-500A
Max Box size L500*W450*H140mm
Min Box size L45*W45*H10mm
Max cardboard size L700*W600mm
Production speed 40-70pcs/min
Air supply 10L/min 0.6Mpa
Machine power 2KW/220V
Machine weight 960KG
Machine dimensions L1700*W1200*H2250mm
GET QUOTE
Customize Your High-Efficiency Solution

Our machines can be tailored to your specific workflow.

Tell us about your primary box dimensions, target output, and material types for a tailored proposal and ROI analysis.

What is the main advantage of a fully automatic corner pasting machine like the PC-500A?
How does this machine improve the durability of the finished rigid boxes?
What is the learning curve for operating this automatic machine?
Frequently Asked Questions
Describe your box requirements and receive a tailored machine proposal within 24 hours.
GET EXPERT CONSULTATION
